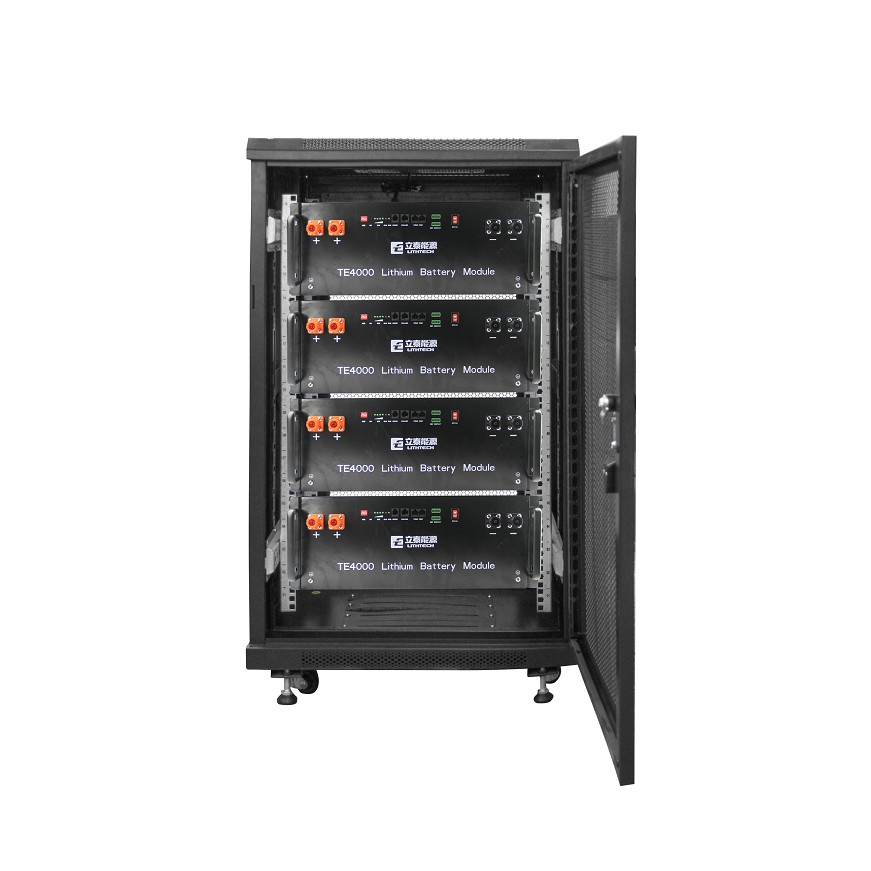

TE4000 48V 100Ah Lithium LiFePO4 48V 100Ah Battery with BMS 51.2KWh Lifepo4 Battery

5 0 Reviews
Developed with our own LFP (lithium iron phosphate) cell to ensure the highest safety and most promising cycle life. Self-designed BMS protects the cell in all angels such as abnormal temperature, current, voltage, SoC, SoH No maintenance and easy installation saves the valuable mainpower.
Price: $ 2599 / pc
Discount Price: $ 2199 / pc
SKU:
Availability:
Quantity:
Buy Now Add to Cart

  • TE4000
  • Lithtech
  • TE4000
Nominal Voltage
48V

Dimensions
482*420*178
Nominal Capacity
100Ah
Weight
48Kg
Capacity@20A
300min
Terminal Type
Connector
Energy
4800Wh
Case material
Steel
Resistance
≤30mΩ
Enclosure Protection
IP20
Efficiency
99%
Cell Type
Prismatic
Self discharge
≤3.5% Per month
Chemistry
Lifepo4
Maximum Module in parallel
15
Configuration
15S1P
Maximum continuous discharging current
50A
Recommend charge current
40A
Peak discharging current
150A≤3s
Maximum charge current
50A
BMS discharge current cut-off
130A±20A
Recommend charge Voltage
52.5-54V
Recommend Low voltage disconnect
42V
 BMS charge voltage cut-off
54V(3.75±0.1V)
Discharge Temperature
-20 to 60 ℃
Certifications
CE/UN38.3/IEC
Charge Temperature
0 to 45 ℃
Communication
RS232/RS485/CAN
Low Temperature cut-off charge
0 ℃ (Customized)
Shipping Classification
UN3480,CLASS9
High Temperature cut-off charge
54℃(Customized)
Warranty
5 Years


48V lithium battery
