| Quantity: |
|---|

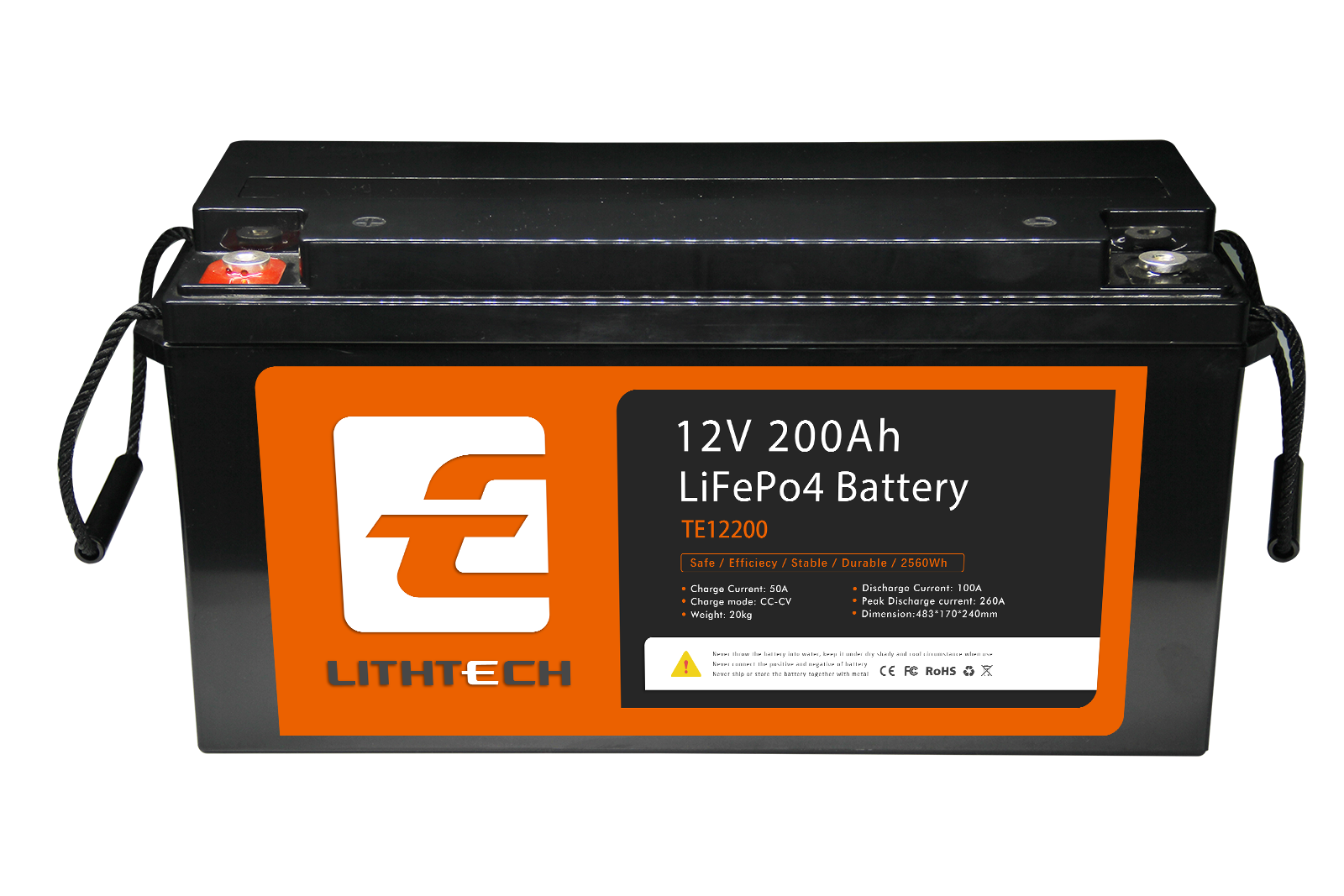

| Rated Voltage | 12.8V |
| Rated Capacity | 200Ah |
| Housing | IP56 ABS case |
| Charging Current | 100A |
| Discharge Current | 100A |
| Peak Discharge Current | 260A(3s) |
| Weight | 21.5Kg |
| Cell Type | 3.2V100Ah Prismatic Cell |
| Chemistry | LiFePo4 |
| Configuration | 4S2P |
| Charge Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity |
| Storage Temperature | 0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity |
| Cycle Life | 5000 times |
| Dimension(L*W*H) | 483*170*240mm |
Lifepo4 battery applications
Boats/Kayaks/Marine: LiFePO4 batteries offer tremendous advantages for powering small boats and kayak motors.
Communications Equipment:replace lead acid and NiMh batteries for radio communications equipment including ham radio.
E-Bikes / E-Scooters / Small Vehicles:for e-bikes/e-scooters E-wheelchair to
replace lead acid batteries.
Electric Golf Cart:LiFePO4 batteries can be used to power electric golf caddies which are used to carry golf clubs across
golf courses.
Energy Storage: LiFePO4 batteries when combined with converters and inverters can be used as an energy storage solution.c
